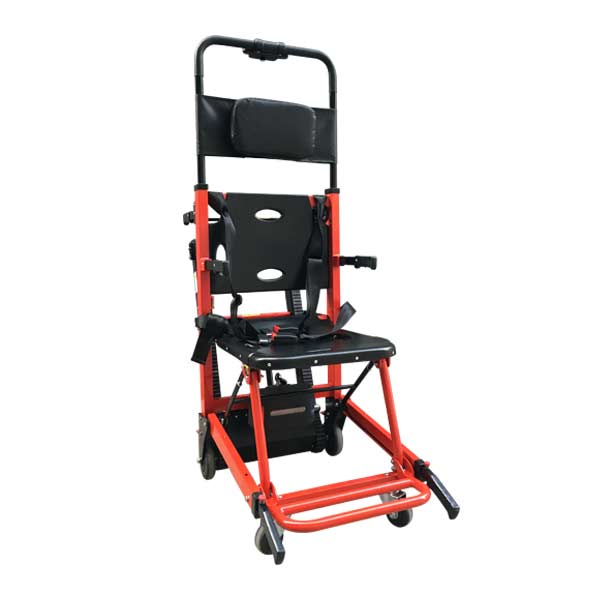

Advanced 36V Electric Rescue Evacuation Chair with speed 3 stages (Order Number: ECS0815)





Specification:

1)   Easy operating, it can climb up and down stairs smoothly and steadily by track.

2)   It won't glide or fall down when stop on the stairs, very safe and reliable.

3)   Circuit is inside the pipe, waterproof, long life time, motor is no noise during operating.

4)   The installation position of the battery is in accordance with international standards, not close to the body, make users feel more comfortable. Detachable battery

5)   With 4 wear-resistant rubber wheels, the chair can use as a wheelchair on the ground.

6)   The chair is equipped with vest type ,metal buckle straps, to ensure the safety during transport.

7)   Made of aluminum alloy, foldable, compact and lightweight.

8)   The electric stair chair is widely used in the home for the old people, school security, hospitals, hotels etc for emergency evacuation.



Accessories: vest belt, lithium battery, wrench set, spongy cushion

Optional: Pillow, Dust cover, Wall bracket

There are different frame color and seat color to suit different environment use

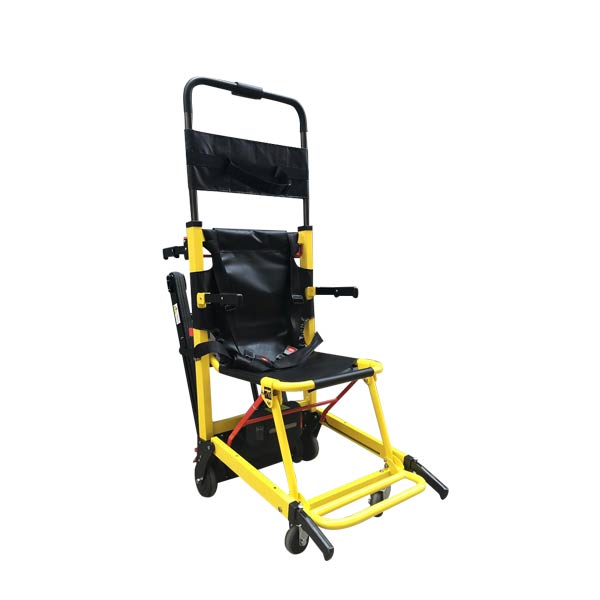

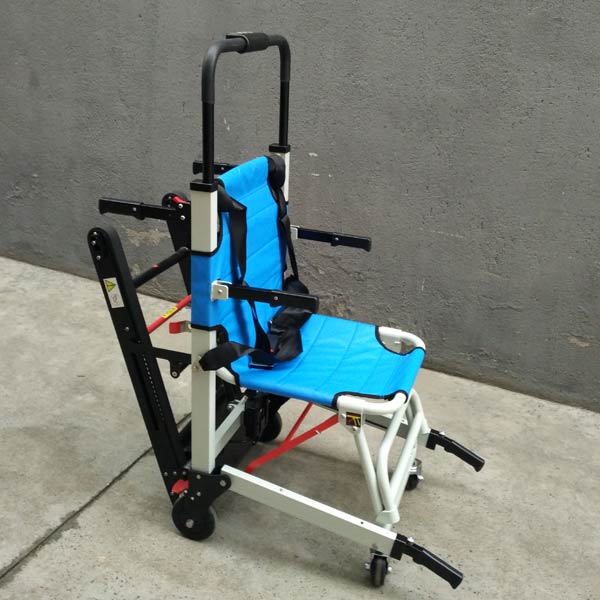

 red color evacuation chair yellow evacuation chair  electric evacuation chair
 Frame red, seat in ABS board  frame yellow, PVC seat leather grey frame, blue PVC seat with foam inside


MODEL

ECS0815 Advanced

UN-FOLD SIZE(L*W*H)

80~110*50*110~160cm

FOLDED SIZE(L*W*H)

115*50*27cm

N.W

30kg

LOAD-BEARING

160kg

Using Time of Full Charge:

2 hours

(up and down five layer building stairs 15 times)

Repeated Charging Times:

500 times

Battery Life

3~5 YEARS

Motor:

36V, 300W,High Quality, no noise



36V motor for speed adjustable model, special for evacuation use, chair with big power, to suit quick rescue

Track:

High wear-resistant materials, life time 3~5 years

Speed:

quicker than basic model 24V

PACKING

1PC/CTN

WOOD BOX SIZE

116*55*30CM

G.W

       43KGS   speed-regulating model
